If you are building a serious home theater system in 2026, you have likely encountered a critical decision: Should you invest in a traditional Class AB amplifier or a modern Class D power amplifier? For decades, audiophiles associated Class D designs with compromises in sound quality. However, the engineering landscape has shifted dramatically. Today, Class D amplification is the backbone of high-performance, immersive audio systems—from compact Hi-Fi setups to 11-channel home theater powerhouses.
At CAMMICA, we have spent years refining Class D architectures to solve the very challenges that home theater enthusiasts face: space constraints, heat management, and the need for massive clean power across multiple channels. This article cuts through the marketing jargon to help you determine if a Class D power amplifier aligns with your system goals.
Modern home theaters are no longer just about two speakers and a subwoofer. With the rise of Dolby Atmos, DTS:X, and immersive 7.2.4 or 9.2.6 configurations, the demands placed on a power amplifier have multiplied. You are no longer driving two channels; you are driving nine, eleven, or even more speakers simultaneously, each requiring transient bursts of power for dynamic movie soundtracks.
Traditional linear amplifiers (Class A, AB, or H) excel at sonic purity but come with significant drawbacks:
Excessive Heat: They operate inefficiently, converting a large portion of electricity into heat rather than sound.
Physical Bulk: The large transformers and heatsinks required make them heavy and difficult to rack-mount.
High Energy Costs: They draw significant idle power, increasing your electricity bill.
Class D amplifiers, by contrast, use Pulse-Width Modulation (PWM) to switch transistors on and off at extremely high speeds, achieving efficiency levels that routinely exceed 90%. This efficiency is not just a technical spec—it fundamentally changes how you can design and enjoy your home theater.
To understand why Class D has become the preferred choice for modern integrators, let's compare the two technologies across the metrics that matter most.
Feature | Class AB Amplifier | Modern Class D Amplifier (e.g., CAMMICA PP11) |
|---|---|---|
Efficiency | 45% – 60% | 90%+ |
Heat Generation | High – Requires large heatsinks and ventilation | Low – Runs cool, ideal for enclosed racks |
Physical Size & Weight | Bulky and heavy due to large transformers | Compact and lightweight |
Power per Channel | Moderate to High | High (e.g., 250W for main channels) |
Ideal For | Stereo purists, small setups | Multi-channel immersive systems, custom installs |
Our flagship PP11 11-channel power amplifier is a direct answer to the limitations of traditional designs. It features an innovative power distribution system with three core audio channels (left, center, right) each delivering 250W of output power, alongside four surround and four sky channels at 150W each. By leveraging Class D topology, the PP11 delivers this immense power without the thermal footprint of a comparable Class AB unit. This means you can stack multiple amplifiers in a single rack without worrying about overheating or tripping thermal protection during a movie's most explosive scenes.
When evaluating a power amplifier for your home theater, do not be misled by a single power rating. Instead, focus on these engineering fundamentals:
A well-designed Class D amplifier must have a robust power supply capable of delivering sustained current to all channels simultaneously. Look for amplifiers that specify power output with all channels driven (ACD) , not just one channel driven. Adequate headroom—typically 1.5 to 2 times the speaker's continuous rating—ensures the amplifier can handle dynamic peaks without clipping, which can damage tweeters.
Even efficient Class D designs generate some heat. The best amplifiers use intelligent fan control or fanless passive cooling with efficient heatsink designs. For custom installation racks, fanless operation is often preferred for acoustic noise isolation.
A modern home theater amplifier should offer both balanced (XLR) and unbalanced (RCA) inputs. Balanced connections are essential for long cable runs in custom installations, as they reject electromagnetic interference and ground loops, preserving the integrity of low-level signals from your AV processor.
Look for comprehensive protection features including over-current, over-temperature, DC offset, and short-circuit protection. These safeguards not only protect the amplifier but also your valuable loudspeakers.
If your goal is to build a high-channel-count immersive home theater system that delivers reference-level dynamics without turning your equipment rack into a space heater, a modern Class D power amplifier is not just a viable option—it is the superior engineering choice. The efficiency, power density, and reliability of contemporary Class D designs have made them the standard for professional cinema and high-end residential theaters alike.

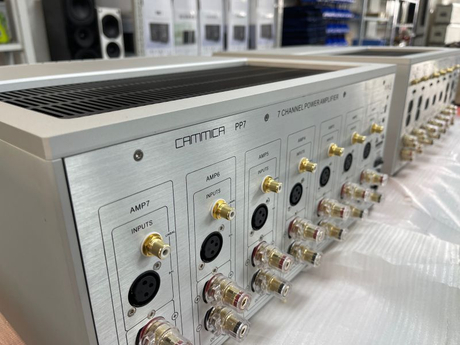

At CAMMICA, we engineer our Class D amplifiers to meet the exacting demands of global integrators and audiophiles. Our PP series delivers the power, channel density, and thermal stability required for today's most ambitious theater designs.
Ready to discuss your next project? Explore our full range of power amplifiers at www.cammica.com/products.html or contact our engineering team for a consultation.
